1.1頻率范圍
- CH 1: (650-800MHz)
- CH 2: (850 – 1080MHz)
- CH 3: (1550-1620 MHz)
- CH 4: (2400 - 2500 MHz)
- CH 5: (5100 – 5300 MHz)
- CH 6: (5700-5950 MHz)
- CH 7: (5950-6200 MHz)
1.2 技術參數
客戶提供產品參數 | Clients provided product parameters | |

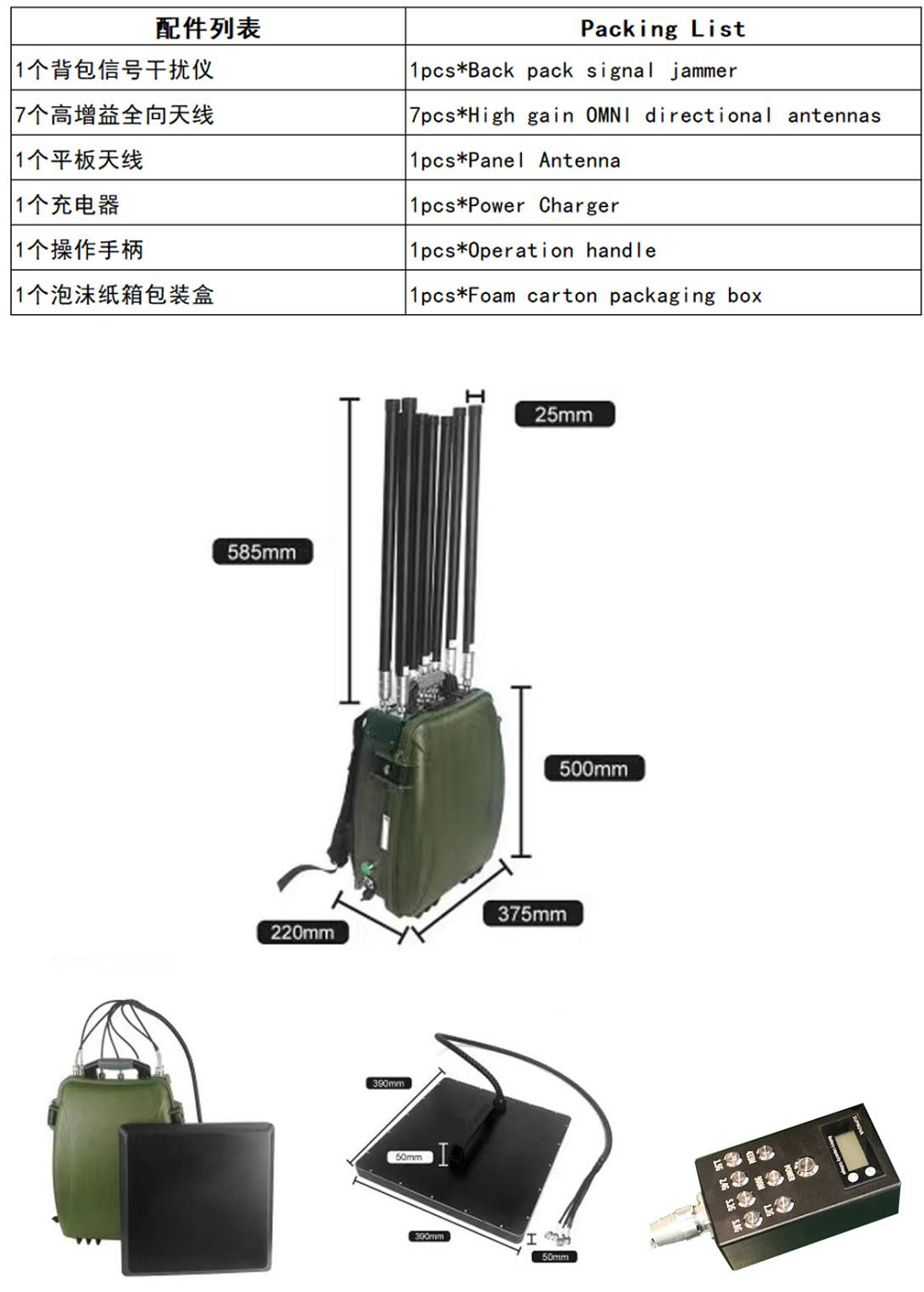

1 | 產品尺寸:375 / 220 / 500 mm | Product size: 375/220/500 mm |
2 | 重量: 21 kg | Weight: 21 kg |
3 | 總輸出功率:最高300 W | Total output power: up to 300 W |
4 | 電源220 V | Power supply 220 V |
5 | 電源電壓220 V AC 50 Hz | Power supply voltage 220 V AC 50 Hz |
6 | 充電電壓24V/5A | Charging voltage 24V/5A |
7 | 內置電源24V 30000m/Ah | Built-in power supply 24V 30000m/Ah |
8 | 工作時間最高1小時 | Working time is up to 1 hour |
9 | 工作溫度-20°C至+55°C | Operating temperature -20℃ to +55℃ |
